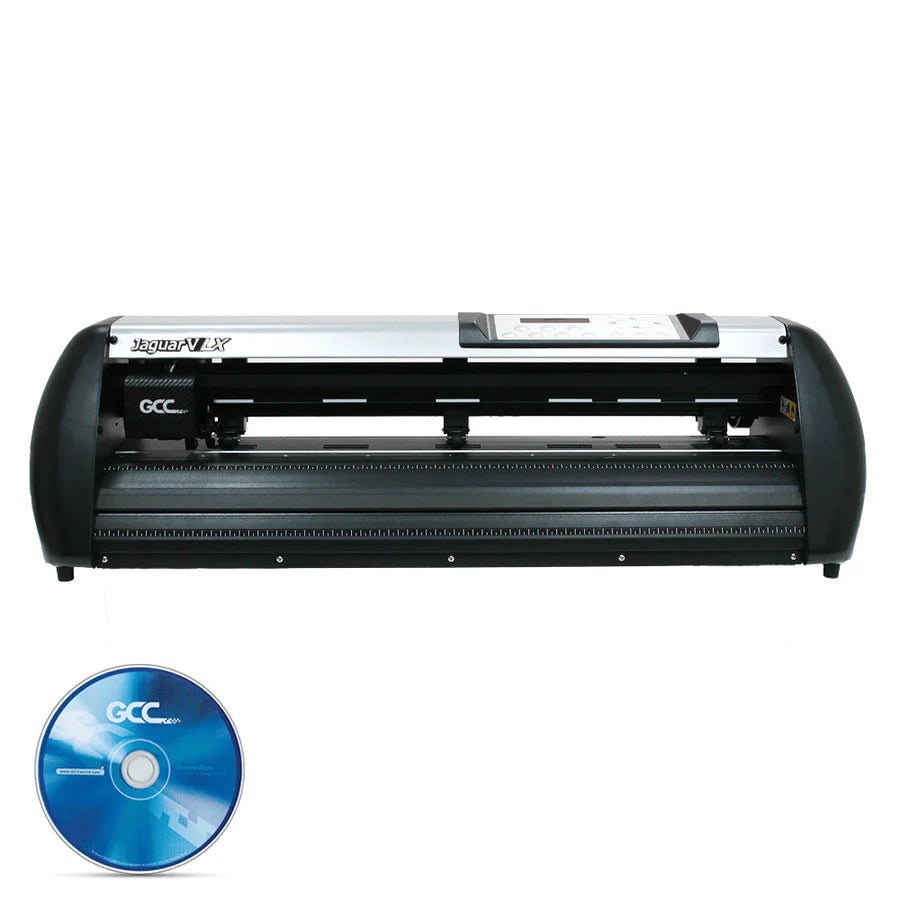

GCC Jaguar V LX Vinyl Cutter Plotter 24"
With the accurate Enhanced AAS II, reliable tracking capability, and intuitive features to meet the demands of today's professionals, the Jaguar V LX series represents the apex of vinyl cutting plotter technology.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Features:
 |
Enhanced AAS II Contour Cutting System: Jaguar V LX series features an enhanced Automatic- Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. |
 |
Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material. |
|
|
Windows Drivers: Jaguar includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the Jaguar system. Easy-to-understand drivers make sign cutting with Jaguar simple. |
 |
600 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 600 g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films. |
 |
Selective Pinch Roller Positioning: Each pinch roller can be positioned and operated individually, widening the Jaguar cutting plotter's range of applications. |
 |
Media Handling System: The media handling system is fully adjustable. It handles media on standard cores and resolves media drifting and alignment problems to ensure better tracking. |
 |
User-Friendly Interface: The easy-to-use and multi-language control panel can remarkably simplify complex tasks. Available in 9 languages, including English, French, Italian, Spanish, Portuguese, Dutch, Japanese, Polish, and Turkish, it provides functional settings to meet users' needs. |
 |
Tri-Port Connectivity: Jaguar supports tri-port connectivity with USB, serial and parallel ports. USB port provides faster and convenient data transmission between computer and Jaguar. Tri-port connectivity provides sign makers great flexibility for data transmission |
Specifications:
- Operational Method: Roller-Type
- Max. Cutting Width: 610 mm (24 in.)
- Max. Media Loading Width: 770mm (30.3 in.)
- Min. Media Loading Width: 50 mm (1.97 in.)
- Maximum Media Thickness: 0.8 mm (0.03 in.)
- Number of Pinch Rollers: 3
- Acceptable Material Thickness: 0.8 mm (0.03 in.)
- Motor Drive: DC Servo Control
- Max. Cutting Speed: 1530 mm/sec (60 ips) (at 45° direction)
- Acceleration: 4.2 G
- Offset: 0 ~ 1.0 mm (with an increase of 0.025 mm)
- Memory Buffer: 32MB
- Interfaces: USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
- Type of Command: HP-GL, HP-GL/2
- Mechanical Resolution: 0.006 mm
- Software Resolution: 0.025 mm
- Repeatability: ±0.1 mm
- Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
- Automatic-Aligning System (AAS II): Yes
- Curve & Arc Smoothing: Yes
- Configurable Origin : Yes
- Tangential- emulation: Yes
- Repeat: Yes
- Copy: Yes
- Pouncing: Optional
- Control Panel: LCD (20 digits x 2 lines), 14 Keys, 1 Power LED
- Diameter of Blade: 2.5 mm
- Power Supply: AC 100-240V, 50~60 Hz (auto switching)
- Stand: Optional
- Media Basket: Optional
- Software: GCC GreatCut-S
- Has Contour Cutting: Yes
The official GCC Jaguar V manual can be found: here
SYSTEM REQUIREMENTS
- Pentium processor-based PC or compatible computer (Windows)
- Windows XP SP3/Vista/7/8/10/11 (Windows)
- Intel or Apple Silicon based Macintosh (Mac)
- Macintosh OSX 10.11 - 12 (Mac)
- 512 MB of RAM or more
- At least 50 MB of available hard disk space
- USB Port 1.1 or 2.x
